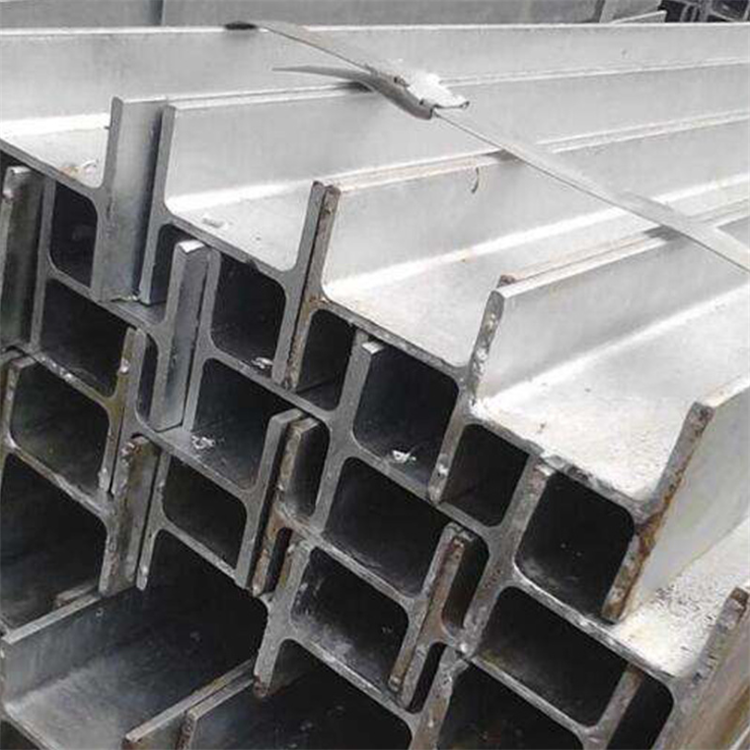

Carbon Steel H Beam

Low MOQ and Flexible Production Ability

Payment: L/C, D/A, D/P, T/T, According to customer requirements

price terms:FOB, CRF, CIF, EXW all acceptable

Delivery: within 10-15 days or considering the quantity

Transport: By bulk or Containers

Support video inspection, welcome to visit our factory

What Are Steel H Beam?

H-Beams, also known as H-Beams have and I or H cross-section. The horizontal elements of the “H” are flanges

while the vertical element is the “web”. H-Beams are commonly made of structural steel but can be formed out of aluminum.

H-beams are most widely used in construction and can have an application for use in both beams as well as columns.

Infra-Metals offers many different sizes, lengths, and specifications for I-beams.

Description	Execution	lbs/ft	h in.	b in.	tw in.	tf in.
S 3×5.70	Hot Rolled	5.7	3	2.33	0.17	0.26
S 3×7.50	Laser	7.5	3	2.509	0.349	0.26
S 4×7.70	Hot Rolled	7.7	4	2.663	0.193	0.293
S 4×9.50	Laser	9.5	4	2.796	0.326	0.293
S 5×10.0	Hot Rolled	10	5	3.004	0.214	0.326
S 5×14.75	Laser	14.75	5	3.284	0.494	0.326
S 6×12.5	Hot Rolled	12.5	6	3.332	0.232	0.359
S 6×17.25	Laser	17.25	6	3.565	0.465	0.359
S 7×15.3	Laser	15.3	7	3.662	0.252	0.392
S 7×20.0	Laser	20	7	3.86	0.45	0.392
S 8×18.4	Laser	18.4	8	4.001	0.271	0.425
S 8×23.0	Laser	23	8	4.171	0.441	0.425
S 10×25.4	Laser	25.4	10	4.661	0.311	0.491
S 10×35.0	Laser	35	10	4.944	0.594	0.491
S 12×31.8	Laser	31.8	12	5	0.35	0.544
S 12×35.0	Laser	35	12	5.078	0.428	0.544
S 12×40.8	Laser	40.8	12	5.252	0.472	0.659
S 12×50.0	Laser	50	12	5.477	0.687	0.659
S 15×42.9	Laser	42.9	15	5.501	0.411	0.622
S 15×50.0	Laser	50	15	5.64	0.55	0.622
